詳細情報 |
|||
| アプリケーション: | ウェットスーツ、ガスケット、ホース、整形外科用ブレース、ラップトップスリーブ | ネオプレンの色: | 黒、白、カラフル |
|---|---|---|---|
| 生地の色: | 迷彩 | 破断時伸び: | 300% ～ 600% |
| 圧縮永久歪み: | 15% - 30% (70℃で22時間後) | 抗張力: | 7～14MPa |
| 耐薬品性: | オゾン、太陽光、風化に対する耐性 | パターン: | 彫刻 穴を掘り 印刷 |
| 紙のサイズ: | 51*130インチ,51*83インチ | キーワード: | ネオプレン材料 |
| プロセス: | ラミネート加工 | 生地の種類: | ナイロン ポリエステル ラクラ スパンデックス 綿 |
| 硬度: | 5-10ショアa | 耐油性: | 良い |
| 州: | 閉鎖した細胞 | ||
| ハイライト: | Enhanced Traction Neoprene Material,Embossed Neoprene Material,Diamond Waffle Neoprene Material |
||
製品の説明
Product name: Diamond‑Grip Embossed CR Neoprene for Gloves, Palms, and High‑Wear Reinforcement Panels
Overview:
This B2B neoprene composite is engineered for superior grip, abrasion life, and thermal comfort in wet or dry conditions. A genuine CR (chloroprene) closed‑cell foam core is laminated to a rugged jersey, then finished with a deep diamond/waffle emboss on the working face. The 3D texture increases surface friction and sheds water to maintain traction, while the CR foam provides cushioning, insulation, and shape stability under repeated compression. Ideal for glove palms and finger zones, wetsuit knee/seat panels, boot insteps, and industrial PPE reinforcements.
Why it’s different:
- 3D diamond grip: Aggressive, repeatable emboss yields reliable traction even when damp or sandy.
- Built for wear: Textured face and tight knit resist scuffs, pilling, and tearing—outlasting standard jerseys.
- True CR performance: Elastic, low water absorption, and long‑term compression set resistance.
- Factory efficiency: Uniform thickness, clean cuts, and stable lamination for accurate nesting and strong seams.
- Customizable platform: Choose thickness, backing fabrics, color, and add coatings or prints.
Recommended applications:
- Watersports gloves and mitts: palm, thumb crotch, finger tips, knuckle overlays
- Wetsuit reinforcements: knees, elbows, seat, shoulder patches
- Footwear/booties: instep and outsole overlays, toe guards
- Industrial & tactical PPE: tool‑handling grip pads, protective sleeves, strap pads
- Fitness/outdoor: paddle grips, handle wraps, bike and scooter grip covers
Technical specifications:
| Item | Detail |
|---|---|
| Core polymer | CR (Chloroprene) neoprene, closed‑cell |
| Standard thickness | 2, 3, 4, 5 mm; other gauges available on request |
| Face A (working side) | Diamond/waffle embossed grip surface over durable knit |
| Face B (lining side) | Nylon/spandex jersey, smooth‑skin, or other fabrics per spec |
| Density | 120–180 kg/m³ typical (select grade by use) |
| Hardness | Soft–medium, approx. Shore 00 3–8 |
| Stretch & recovery | Controlled multi‑direction stretch; holds shape in high‑stress zones |
| Compression set | Low; maintains cushioning and thickness after repeated use |
| Water behavior | Very low absorption; quick‑dry; suitable for salt/chlorine exposure |
| Thermal performance | Closed‑cell insulation; optional titanium/graphite inner for extra warmth |
| Width | 110–140 cm typical; slit‑to‑width service |
| Color | Black or dark gray standard; custom colors/prints via MOQ |
| Processing | Die/CNC cutting, gluing, blind‑stitch, bartack reinforcement, seam taping |
| Testing/Compliance | RoHS/REACH statements; AZO‑free dyes; abrasion/tear reports available |
| Packaging | Rolled, poly‑wrapped, export cartons with batch traceability |
| MOQ & lead time | OEM production; depends on thickness, width, and face configuration |
Design and manufacturing guidance:
- Palm/finger zones: Use 2–3 mm for dexterity; 4–5 mm for impact and cold‑water warmth.
- Panel orientation: Align emboss pattern to dominant motion for best traction and flex.
- Bonding: Use neoprene contact cements; roughen bonding areas if emboss is very deep.
- Seams: Blind‑stitch and tape for watertight builds; bartack at load points for gloves.
- Hybrid builds: Pair diamond‑grip outside with titanium‑coated inside for warm, low‑absorption gloves or suit panels.
Available upgrades:
- Silicone or PU micro‑dot print over emboss for extreme wet grip
- Aramid/Kevlar‑blend reinforcement fabrics for cut/heat resistance
- DWR finish on jersey face for enhanced water beading
- Recycled RPET jerseys to meet brand sustainability goals
- Custom emboss plates (logo or unique texture) with tooling MOQ
Care recommendations for finished goods:
- Rinse after salt or chlorine; mild detergent only
- Air dry in shade; avoid high‑heat tumble or solvents
- Store flat or rolled away from UV/ozone to maximize service life

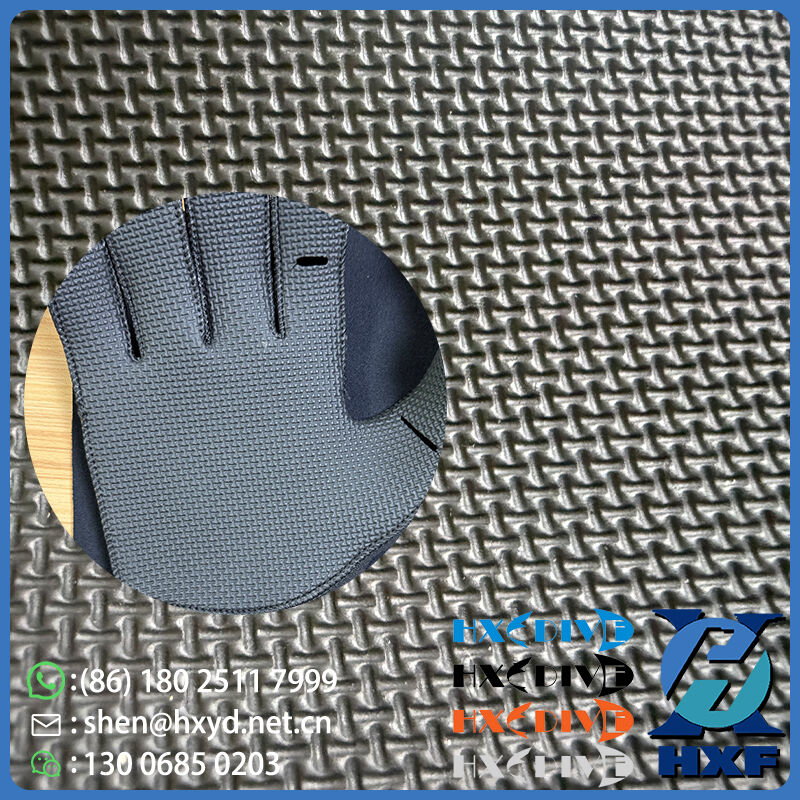

Notes referencing the image:
- The sample shows a pronounced diamond/waffle emboss providing high friction and water‑shedding channels. The glove insert demonstrates clean cuts and stable stitching, indicating consistent foam density and robust lamination—ideal for heavy‑use palms and reinforcement patches.
Contact us for:
- Thickness and fabric selection by application
- Test data (Martindale/Taber abrasion, tensile/tear)
- Color/emboss customization, sampling, and bulk quotations
